LS25508

Dimensions (mm)

L550*W436.8*H88mm

Material

Anti-finger Rohs-SGCC 1.0mm
Zinc-coated steel

Cooling

3 x 8025S mm fans (Front)

Front Panel Controller

1x Power, 1x Reset, 1x E-Sata
2x USB2.0/USB3.0

LED Indicators

1x Power Led,9x HDD Led,2x NIC Leds

Drive Bays

Front-Lockable door
External: 8*3.5”/2.5” Bays(Hotswap)
Internal: 2*2.5”Bay

System Board

12”*10.5”,12”*9.6”, 9.6”*9.6”, 17*17cm(ITX) etc

Expansion Slots

7x Half Height Slots

Power Supply

1UPSU 250W~500W;2U PSU 600W/ 850W.

Color

Front  in Black;
OEM Available.

Package Dimension

535*525*135mm

Net Weight

4.5kg

Gross Weight

Mounting Kits

Option Tooless Rack Sliding Rails---TR101

custom services

support

Order Code

M/B

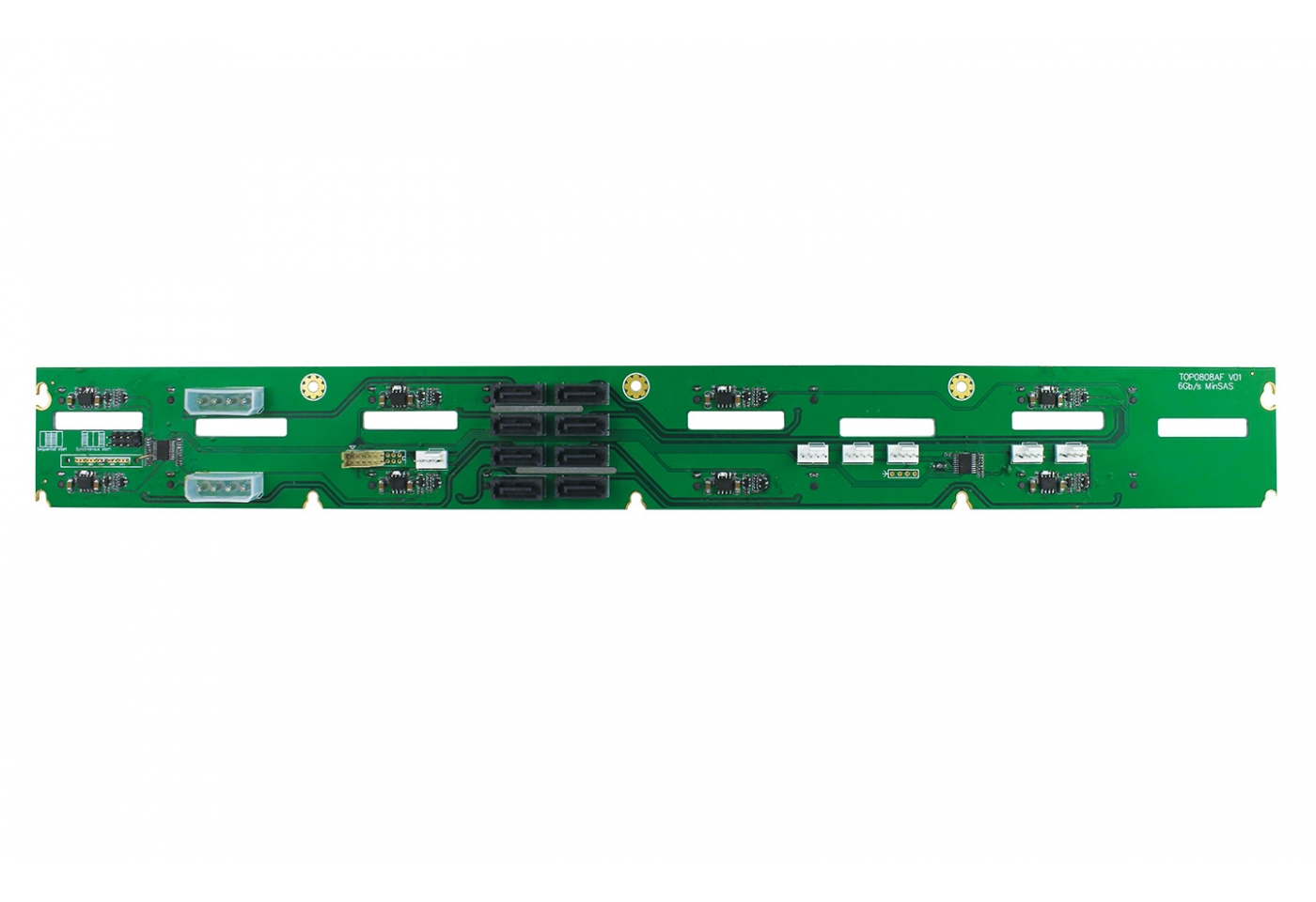

HDD Backplane

PSU

Rear Window

Slide Rail

CS15604A6

12"x10.5"

4-Bay 2.5"/3.5", 6GB SATA

Option 400W/500 1U single

1-Slot,HF

Option

CS15604M6

12"x10.5"

4-Bay 2.5"/3.5", 6GB mini SAS

Option 400W/500 1U single

1-Slot,HF

Option

CS15604G12

12"x10.5"

4-Bay 2.5"/3.5", 12GB mini SAS HD SGPIO

Option 400W/500 1U single

1-Slot,HF

Option

CS16504A6

12"x13"

4-Bay 2.5"/3.5", 6GB SATA

Option 500 1U single

1-Slot,HF

Option

CS16504M6

12"x13"

4-Bay 2.5"/3.5", 6GB mini SAS

Option 500 1U single

1-Slot,HF

Option

CS16504G12

12"x13"

4-Bay 2.5"/3.5", 12GB mini SAS HD SGPIO

Option 500 1U single

1-Slot,HF

Option

CT16510G12

12"x13"

10-Bay 2.5", 12GB mini SAS HD SGPIO

Option 500 1U single

1-Slot,HF

Option
