Form Factor

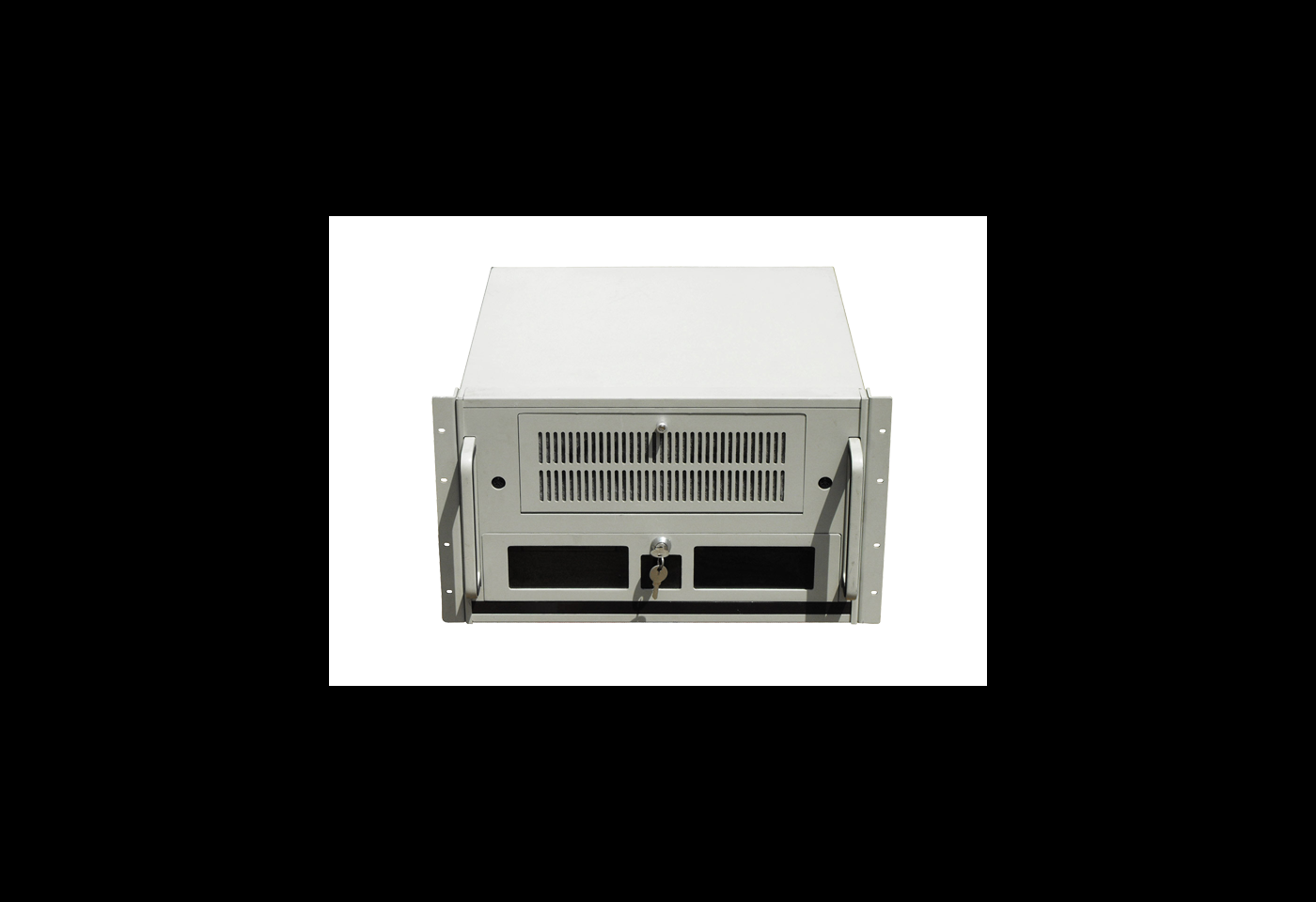

6U Industrial Case

M/B Form Factor

Support mainboard size up to 12＂x 13＂

Dimensions (Dx Wx H)

600 x 430x 267(mm)

Material

1.2mm SGCC Zinc-coated steel

Front Control

1x Power On/Off, 1x System Reset, 2 x USB 2.0 or 2 x USB 3.0

Indicators

1x Power/HDD/KB-LK LED

Hotswap Backplane

N/A

Drive Bays

2x3.5〞HDD,1x3.5〞FDD bays,2x5.25〞CD-ROM bays

Cooling Fans

1x12025 fan

Expansion Slots

20 Full-height slots

PSU Form Factor

Standard PS2 power supply

Color

Black (color can be customized)

Application

Widely used in industrial control and communication etc.

Net Weight

14.2kg

Gross Weight

15.5Kg

Unit Carton Size

700x530x340（mm）

Customized

Available

Order Code

M/B

HDD Backplane

PSU

Rear Window

Slide Rail

CS36516M6

12"x13"

16-Bay 2.5"/3.5",6GB mini SAS

Option 600W/750 2U single

650W/800 2U Redundant

7-Slot,FF

Option

CS36516E6

12"x13"

16-Bay 2.5"/3.5", 6GB mini SAS Expander

Option 600W/750 2U single

650W/800 2U Redundant

7-Slot,FF

Option

CS36516G12

12"x13"

16-Bay 2.5"/3.5",12GB mini SAS HD SGPIO

Option 600W/750 2U single

650W/800 2U Redundant

7-Slot,FF

Option

CS36512M6

12"x13"

12-Bay 2.5"/3.5",6GB mini SAS

Option 500W/600 2U single

650W/800 2U Redundant

7-Slot,FF

Option
