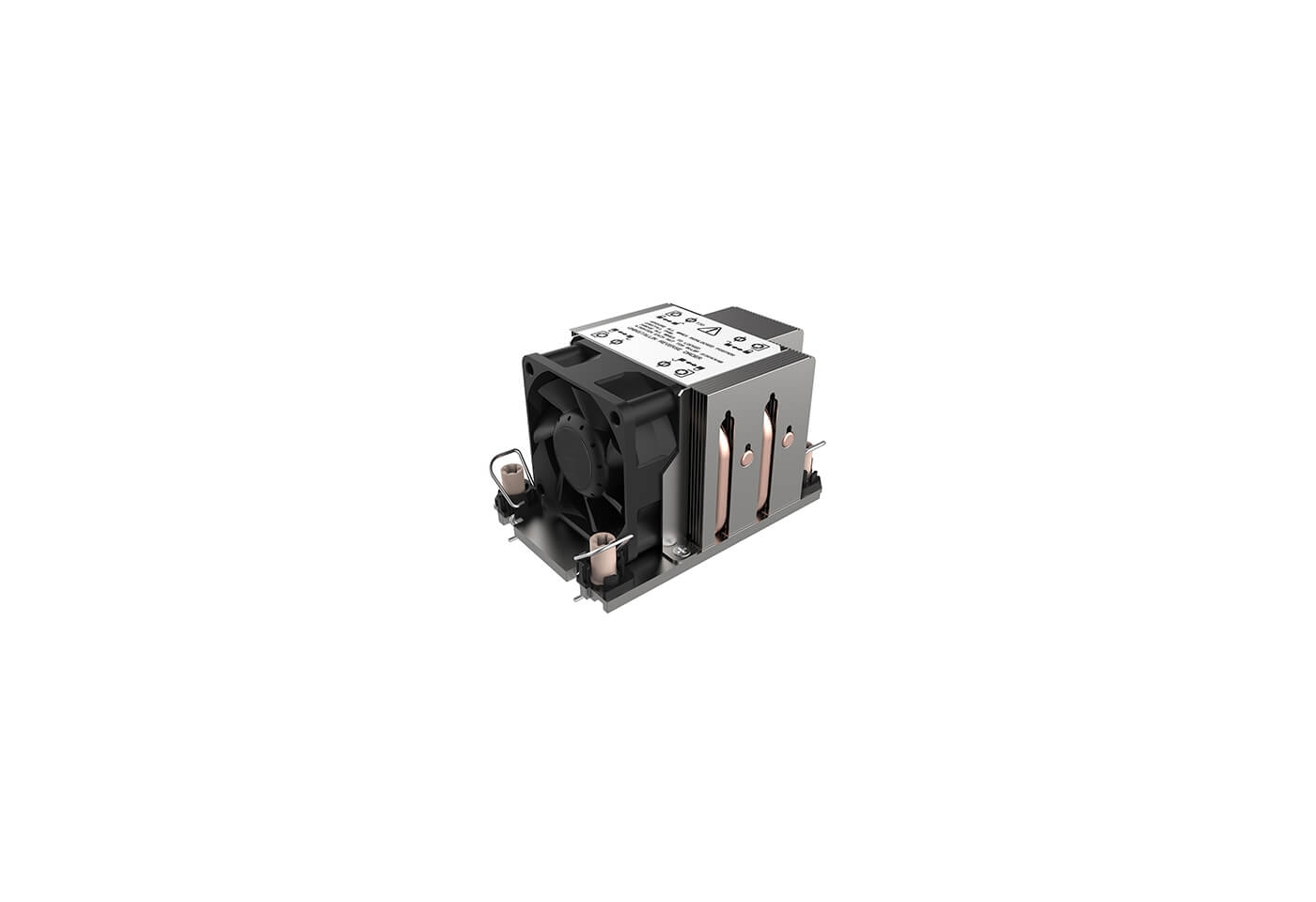

4677-2U4HP Server CPU Heatsink

Features

● LGA4677 4710 Narrow 2U Active cpu cooler

● Delicated for 2U Server and up servers

● Aluminum Fin Stack,4 Heatpipes and Cooper Base

● With a 60mm Dual-Balling 4Wire PWM Cooling Fan

● Upto 270W CPU Power Heat Dissipation (Note:Matching with the application environment &Cooling fans)

● Recommend for Intel® Granit Rapids SP Processor

CPU Support	Intel® Granit Rapids SP
CPU Socket	FCLGA 4677 / 4710
Screw Type	#8-32
Installation Torque	8 in-lb
Solution	2U Server and Up
Dimensions	118 x 78 x 64.50 mm
Weight	460 ±10 g
Material	4 Heatpipes with Cooper Base and Aluminum Fin Stack
Fan Dimension	60 x 60 x 25 mm
Speed	At Duty Cycle 0~20%: 2100± 150 RPM At Duty Cycle 100%: 8000±10% RPM
Rated Voltage	12V
Bearing	Double Ball
Air Flow	At Duty Cycle 100%: 34.75 CFM
Noise Level	At Duty Cycle 100%: 54.30 dBA
Lead Wire Pin Out	Pin#1-Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM)
Thermal Grease	Shin-Etsu X23-8079-2
TDP	270W

*All product specifications and product images are subject to change without notice
