RC450

Features

4U 7-slot Industrial Chassis L=450mm

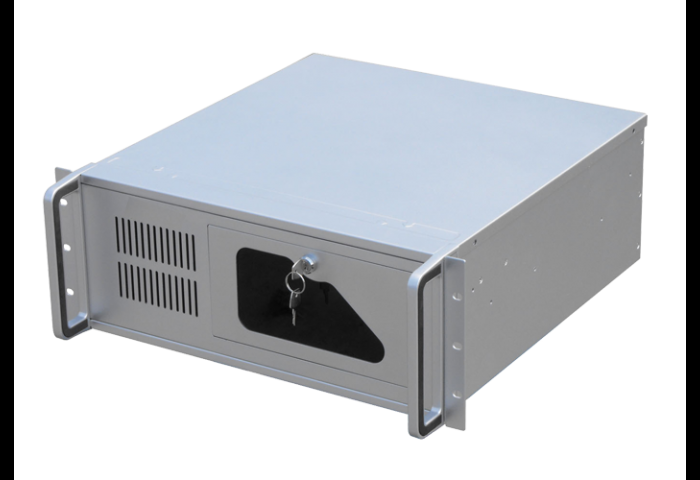

RC450 is a 4U-high 17.8 inch rackmount industrial computer chassiss.Made of a 1.2mm heavy-duty steel. Support 7*full height expansion slots MAX 12"*9.6" Industrial motherboard.One 12cm ball-bearing cooling fan and Two 8cm ball-bearing cooling fans maintains positive air circulation through the whole chassis.With washable dust fliter.Supply 2*5.25" and 1*3.5" External Bays,6*3.5"Internal Bays.It‘s good choice for a wide range of industrial computing peripherals.
●High-performance 19" rackmount chassis
●4U 7-slot Industrial Chassis L=450mm
●Support single PS/2 power supply
●Support 7*full height PCI/PCIe Cards
●Support MAX 12inch*9.6inch ATX boards
●External 2x5.25” & 1x3.5” bays, Inner 6*3.5” HDD bays
●Flexible hold-on bar to adjust the different height of add-on cards
●All products structure/logo etc are customzied available！

Form Factor	4U Industrial Case
M/B Form Factor	Support mainboard size up to 12＂x 9.6＂
Dimensions (Dx Wx H)	450 x 427x 177(mm)
Material	1.2mm SGCC Zinc-coated steel
Front Control	1x Power On/Off, 1x System Reset, 2 x USB 2.0 or 2 x USB 3.0
Indicators	1x Power/HDD/KB-LK LED
Hotswap Backplane	N/A
Drive Bays	8 x3.5〞HDD bays,1x3.5〞FDD bay,2x5.25〞CD-ROM bays
Cooling Fans	1x12025 fan and 2x8025 fans
Expansion Slots	7 slot
PSU Form Factor	Standard PS2 power supply
Color	Black (color can be customized)
Application	Widely used in industrial control and communication etc.
Net Weight	11.2kg
Gross Weight	13.5Kg
Unit Carton Size	580x530x260（mm）
Customized	Available

Option Item	Part Number	Description
Slide Rail	22",26",28"	22",26",28" Rack Rails Kits
Fan	AD1225B12H-P1P	Becool,12025B 4PIN PWM 0.53A 12V L300mm 3000RPM
Power Supply	300/400W	Delta,300/400W
Power Supply	300/400W/500W/600W	FSP,300/400W/500W/600W
Power Supply	600W/850W	Delta,600W/850W
Motherboard	IMB-Q170 etc.	5*PCIe,Intel 1151 6/7/8/9th Processor,XEON E3 V5/V6
