8049ETX-12

Features

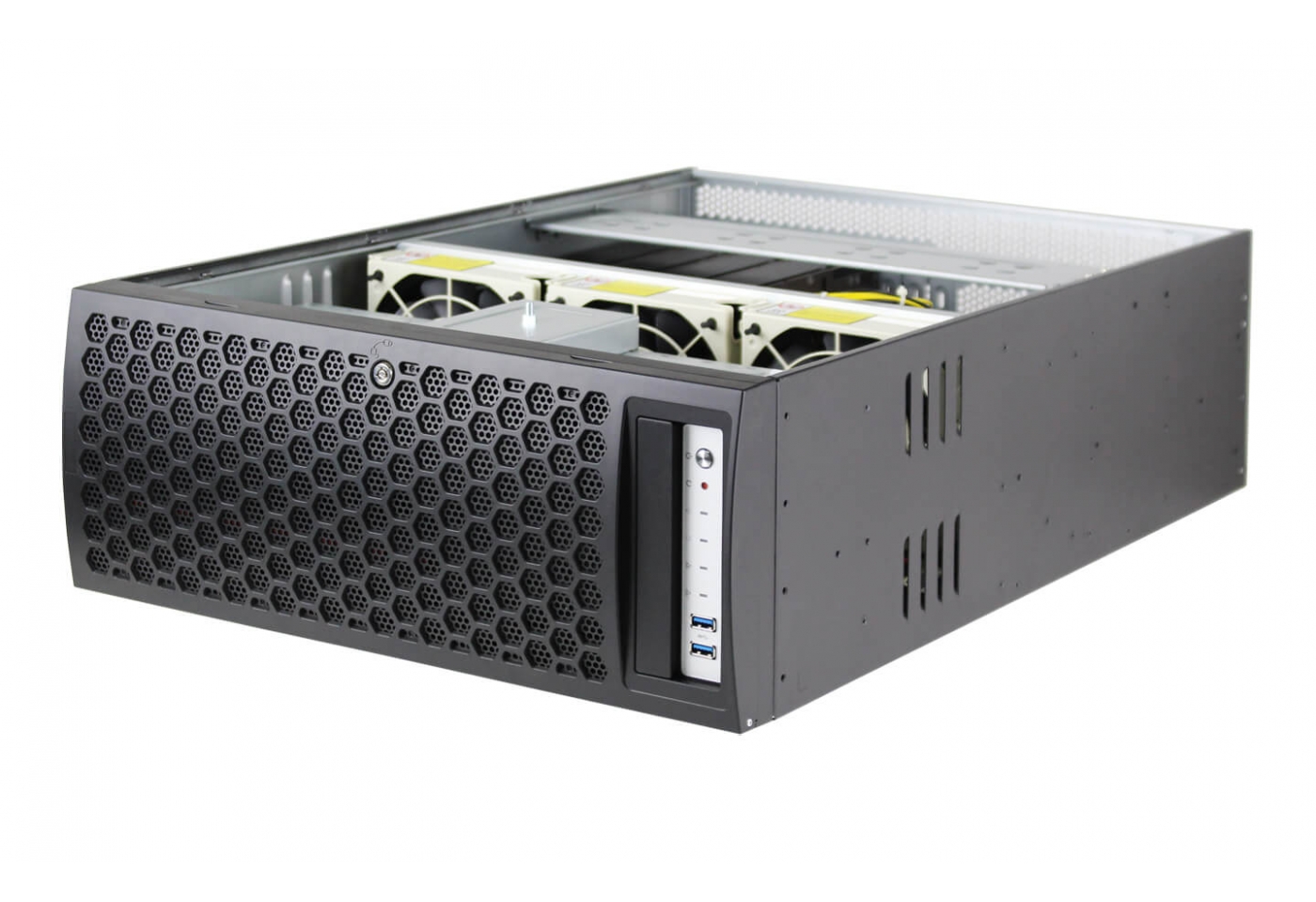

8049ETX-12 Tower Convertible Rack server chassis, supports rack mount and vertical mounting;Supports 12*SATA/SAS/NVME hot-swappable hard disks (NVME optional), built-in 12*Tooless hard disk Carries;Supports Max 15.2"*13.2" (Eg:Supermicro X10DRG-Q/ X11DPG-QT/X12DPG-QT6/Tyan S7106, etc.);Support 11 PCIE full-height expansion slots, can install 4*Dual Slot GPUs, support Mainstream Nvidia 3080/3090/4080/4090 GPUs;Recommend the CRPS redundant power supply module Power board;1300W, 1600W, 2000W,2600W etc Option.Standard 3 x 12038 (Middle) and 2 x 8038(Rear)Dual-balling high speed cooling fans;The front door panel adopts high-density air inlet holes, has good heat dissipation duct;It‘s widely used in AI model training, deep learning, rendering, cloud computing and other fields.

Form Factor	Workstation,Tower&Rackmount Chassis
M/B Form Factor	Motherboard MAX 15.2"x13.2". Eg:Supermirco X10DRG-Q/X11DPG-QT/X12DPG-QT6/Tyan S7106 etc.
Dimensions (Dx Wx H)	650 x 437.5 x 176.5(mm) 25.56" x 17.2" x 7"
Material	High quality Anti-finger 1.0 mm SGCC& Super ABS ROSHs
Front Control	1x Power On/Off, 1x System Reset, 2 x USB 3.0
Indicators	1x Power Status, 2x LAN Activity, 1x HDD Status
Hotswap Backplane	1)6GB SATA Hot-swap Backplane (Default) 2)12GB Mini SAS HD SGPIO Hot-swap Backplane（option） 3)Nvme Hot-swap Backplane,support SATA/SAS/Nvme（option）

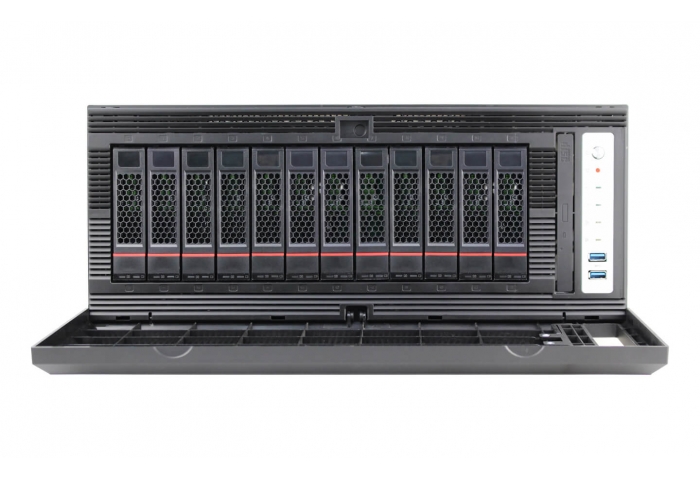

Drive Bays	External 3.5"/ 2.5"：12（Hotswap,SATA/SAS/Nvme,Nvme optional） Internal 3.5"：N/A （/2*2.5" SSD hotswap HDD Trays Rear optional） Slim DVD-ROM：1
Cooling Fans	Default 3x 120mm(T=38mm), PWM （Middle）， +2*80mm(T=38mm), PWM（Rear）Dual-Balling Fans
Expansion Slots	11x Full Height
PSU Form Factor	Option CRPS 80Plus Platinum Redundant power supply. 1300W,1600W,2000W,2200W,2600W,3000W etc.
Color	Coated Black (Others customized)
Application	Cloud Storage, Cloud Computer, Huge Storage,Datacenters, NVR, Security Monitor Industry etc.
Net Weight	21.15Kg
Gross Weight	23.50Kgs
Unit Carton Size	826034CM
Customized	Available

Option Item	Part Number	Description
Slide Rail	SR266HT	3Section Rack Sliding Rails
Power Supply	3000W PSU Board	1300W-80Plus Platinum CRPS Redundant PSU 1600W-80Plus Platinum CRPS Redundant PSU 2000W-80Plus Platinum CRPS Redundant PSU 2200W-80Plus Platinum CRPS Redundant PSU 2600W-80Plus Titanium CRPS Redundant PSU 3000W-80Plus Titanium CRPS Redundant PSU
Backplane	3*4bay	1)A06--6Gb SATA Backplane 2)N04--12Gb Mini HD with Nvme Backplane
CPU Cooler	4U/Workstation	LGA4189/1700/3647/SP3/SP5
GPU Cable 1	2+6PIN	2*(2+6)Pin GPU Cables for 30xx GPU Card.
GPU Cable 2	12+4Pin	Option 12+4Pin GPU Cables for 40xx GPU Card.
Cooling Fans	12038/8038	312038 Hotswap PWM Fans（Default） 28038 PWM Fans（Default）
